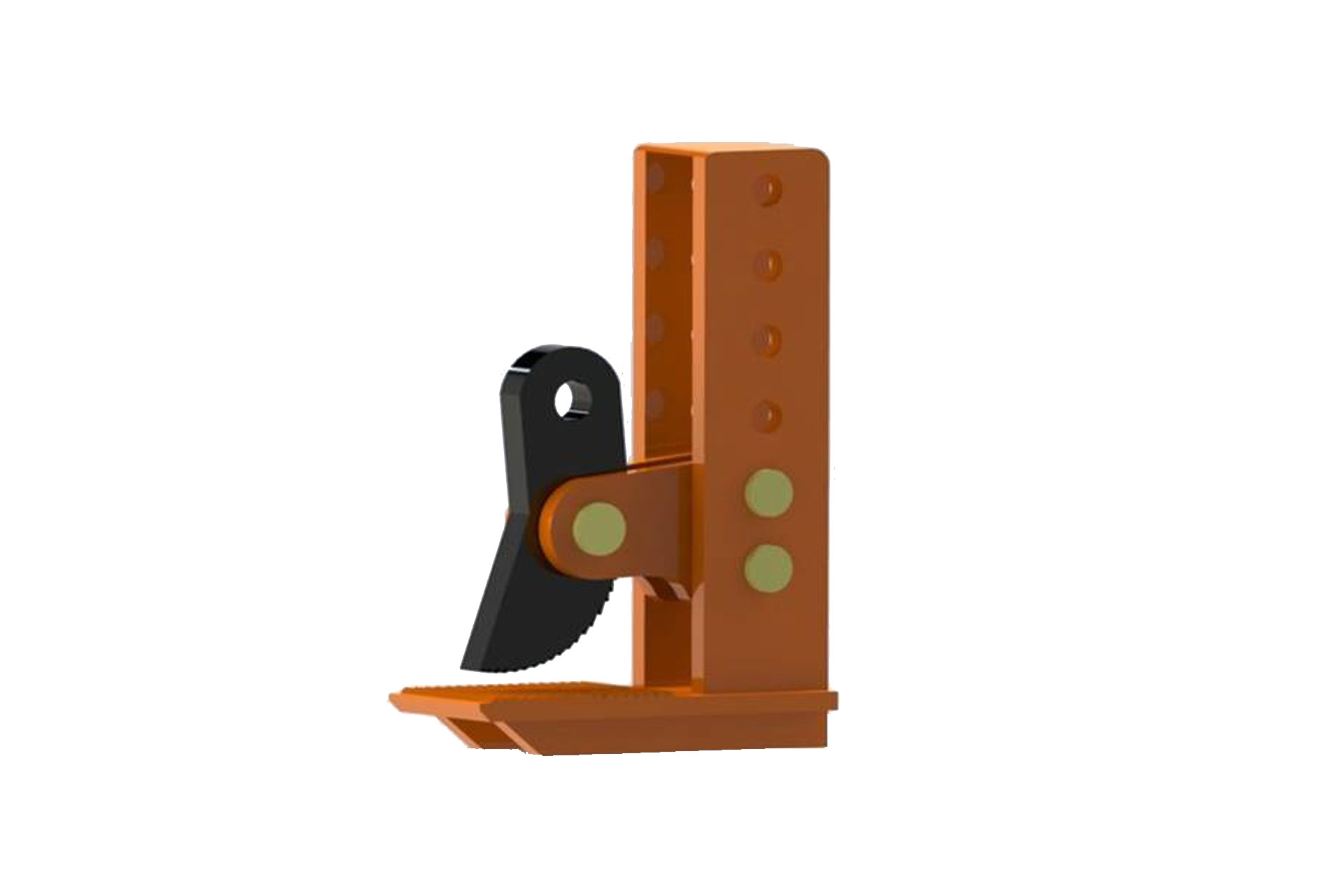

Plate Lifting Clamp With Adjustable Jaw Opening
- For lifting, handling and transporting of packages and single steel plates.
- Horizontal lifting clamps must always be used in pairs.
- Capacity 1.5 tons per pair up to 9 tons per pair.
- Opening 3 – 180, 3 – 300 and 3 – 420 mm.
| Model | WLL (ton) | Jaw Opening (mm) | A | B | D | E | F | R | X | Y | Weight |
| HPLC-4 | 2 | 3-180 | 290 | 200 | 30 | 135 | 27 | 60 | 87 | 20 | 9 |
| HPLC-6 | 3 | 3-300 | 410 | 235 | 35 | 165 | 27 | 70 | 105 | 20 | 13 |
| HPLC-10 | 5 | 3-420 | 540 | 250 | 40 | 165 | 27 | 75 | 120 | 20 | 23 |
| HPLC-16 | 8 | 3-420 | 540 | 250 | 40 | 165 | 27 | 75 | 120 | 20 | 29.5 |
