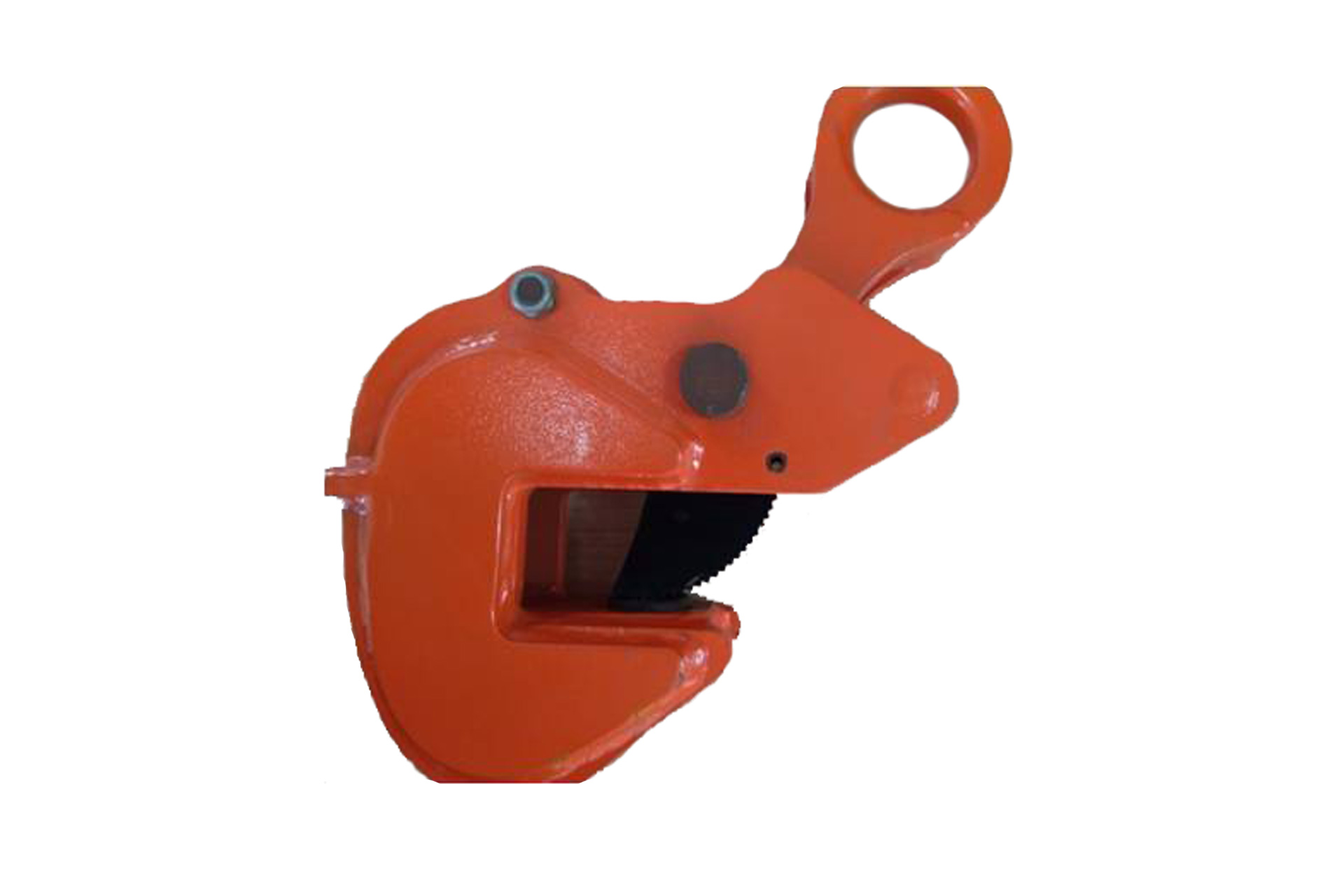

Horizontal Plate Lifting Clamp With Safety Lock

Horizontal clamps are made with medium carbon  steel of  high strength. Extra hard material is used wherever required. Individual clamp is proof  tested with 2 times the load  of working load  limit. Maintenance replacements  parts are available.

• Available in capacities of  0.5,1, 2,.3 , 5,8 & 10 metric tons.
• With safety latch system can be locked.
• Individual clamp is proof tested with 2 times the load of working load limit.
• Used for girders in pairs, for handling sheets and bundles of sheets, sling  with three  clamps or more.

Model	WLL (Ton)	Jaw Opening  (mm)	T       (mm)	U       (mm)	V       (mm)	L        (mm)	Net Weight (Kg)
HPLCSP-1	0.5	0-25	235	122	54	44	3.2
HPLCSP-2	1	0-25	262	155	60	50	5.3
HPLCSP-4	2	0-30	280	177	72	56	7.9
HPLCSP-6	3	0-38	315	209	88	58	10.5
HPLCSP-10	5	0-40	380	261	104	60	27.6
HPLCSP-16	8	0-50	488	290	139	100	48.5
HPLCSP-20	10	0-50	488	290	139	100	52.1
